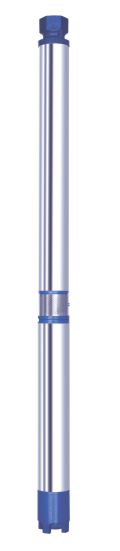

V3 Submersible Pump Set

68MM & 74MM

Teraflo brand makes highly efficient durable and best Quality V3 submersible pumpset with water filled motors. Available on both outer diameter of 68mm & 74mm.

  • Salient Features
  • Application
  • Material of Construction
  • Technical Specifications
  • Downloads
  • Fully stainless steel stator tube.
  • All the diffusers and impellers are glass filled engineer polymer with stainless steel wear rings.
  • Rotor supply with Epoxy paint for long life and corrosion free.
  • Dynamically balance rotor which give noise less & vibration free operation.
  • Light weight & Easy to operate in wide voltage band.
  • All parts machined on CNC to set consistent Quality performance.
  • Rotor are grinded & burnished to give better surface finish value which ensure long life.
  • Can be installed with HDPE/UPVE Pipes.
  • Start Easily at low voltage.
  • All hardware are stainless steel
  • All rubber parts are which NBR
  • Domestic water supply-Apartment, Building & Hotel
  • Fountains, Canals & Rivers.
  • Solar Application
  • Domestics water supply.
  • Fire Fighting System.
  • Unshaped and crossed borewell.
  • Replace of hand pump.

Motor                                                                                                                              Pump

Motor Shaft : AISI 410                                                                                                                        Bowl& Impeller : Glass Filled engineered polymer.
Casting Part : Cl FG 200                                                                                                                     Suction& NRV : CI FG 200 grade.
Thrust Bearing : Tilting pad self alignment carbon S/S                                                                            Pump Shaft : Stainless Steel AISI 410
Winding Wire : Multilayer polyester insulated                                                                                         Pump casing : Stainless Steel
Copper : E.C. grade (99.9%)                                                                                                                All Hardware : Stainless Steel AISI 304
  • Head Range : 6 To 109 Meter.
  • Discharge Range : 10 to 90 LPM.
  • Motor Rating : 0.5HP to 1.5HP, 220V, 50Hz, AC Supply
  • Voltage Range : 140V to 240V
